Quick Details
|
Type:Powder coating unit Substrate:powder coating Condition:New Machine Type:powder gun Coating:Powder Coating Place of Origin:Zhejiang, China Brand Name:COLO, COLO Voltage:110v/220v Power:50w Warranty:1 Year Key Selling Points:Easy to Operate |
Applicable Industries:Machinery Repair Shops, Retail Showroom Location:Peru, Mexico, Argentina After-sales Service Provided:Overseas service center available, Video technical support, Online support Application:Powder coating After Warranty Service:Online support Local Service Location:Malaysia, South Korea Weight:2 kgs Certification:CE |
Packaging & Delivery
Selling Units:Single item
Single package size: 30X20X20 cm
Single gross weight:2.000 kg
Package Type:Paper carton

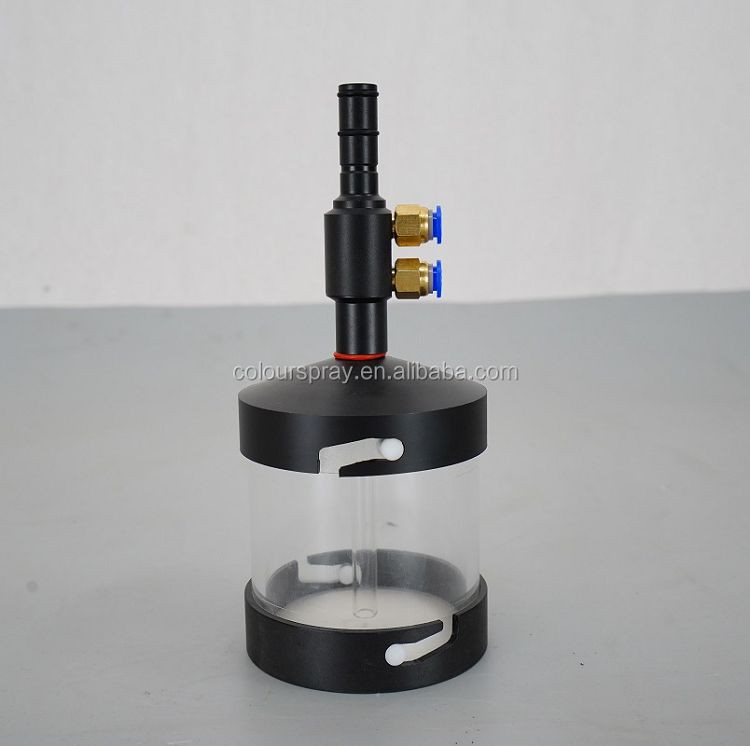

Powder Coating Fluidizing Hopper for Powder Coating Machine
Feature: Self fluidizing
Size: dia 10*10cm
Volume: 500ml
Powder capabitity: 16.9 oz/480g
This cup model used for small sample testing or powder manufacturers, the Cup Unit incorporates the application cup to the gun. The cup is self-fluidizing and is easy to clean, making color changes fast and easy.
The application cup enables a very quick color change
We are Professional supplier of powdr coating equipment
Used for all of the models of COLO powder coating machine
The powder cup gun used in the laboratory or for small powder coating job
Features
1. Powder flow continuous, uniform, excellent atomization
2. The integrated circuit, stable and reliable
3. With air clean gun
Application cup, complete with pneumatic connection to the control unit
Technical Data
Electrical data
| Powder Range | 220V/110V |
| Frequency |
50HZ /60HZ |
| Temp Range |
-10 ℃+50 ℃ |
Powder Gun
1. Gun weight:………………500G
2. Rated output voltage………24VDC
3. Input voltage……………- 200kv
4. Maximum output current………180Ua(max)
5. Maximum output voltage…………0-100KV ( adjustable)
6. Maximum powder injection………600g/min
7. Polarity………………negative (-)
Pneumatic data
1. Maximum input-air pressure…………10kg/cm
2. Optimum input-air pressure……6kg/cm
3. Minimum input-air pressure……4kg/cm
4. Maximum water vapor content or compressed air…1.4g/N m3
5. Maximum oil vapor content of compressed air……0.1ppm
6. Maximum compressed-air consumption………13.2 m3/h
Certifications
Colo has exported to more than 90 countries, such as Mexico, Colombia, Peru, Canada, the United States, Brazil, Russia, Poland, France, Germany, Italy,Egypt, Vietnam, India, Saudi Arabia, South Africa and other countries. We have built good long-term relationship with our customers. They come to visit our factory from time to time.
