Substrate:Metallic
Condition:New
Quick Details
Type:Coating Spray Gun, powder coating recovery system
Substrate:Metallic
Condition:New
Coating:Powder Coating
Place of Origin:Zhejiang, China
Brand Name:COLO
Model Number:COLO-3000-S
Voltage:100-240v
Power:50w
Dimension(L*W*H):120cm*80cm*80cm
Warranty:1 year
Weight:40kgs
After-sales Service Provided:Overseas third-party support available
Certification:CE
kind:one-touch intelligent
Supply Ability
Supply Ability:1000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
wooden carton for the powder sieve center
Port:Shanghai/Ningbo
Lead Time:2-5days

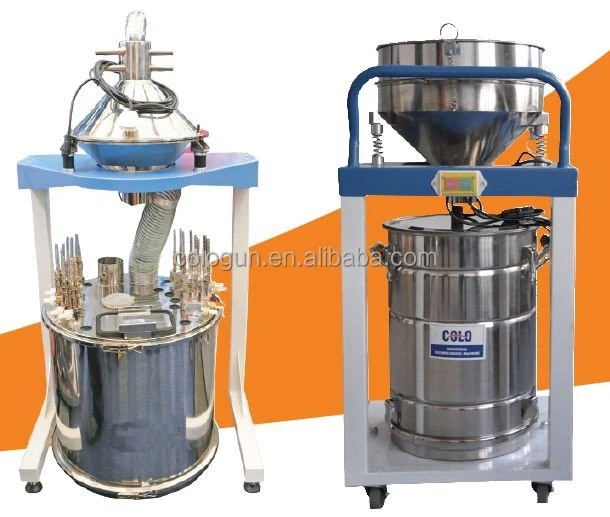

Automatic powder cycling and recovery system

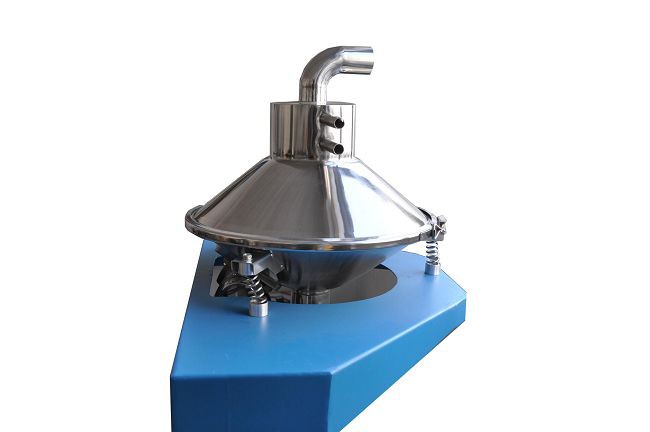

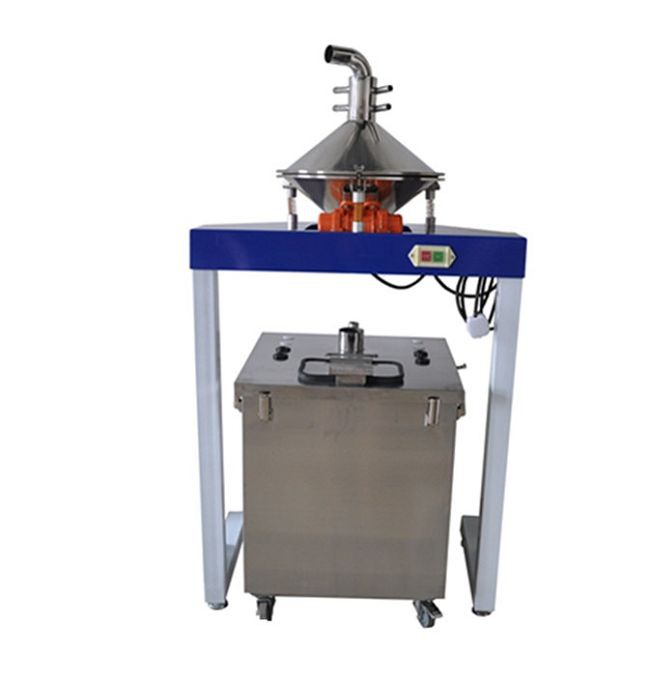

Powder sieving machine- Used in powder coating area, to go with the Automatic reciprocator.
To Automatic recycling the powder lost in the process of electrostatic powder coating on metallic workpieces.
Advantages and characteristics
The system is able to continuously sent the powder being dropped during the process of spraying to the upper part of the butterfly powder screen and then the selected powder is sent to the centralized powder supply barrel which is in charge of continuously supplying powder to automatic guns or manual guns
Easliy cleaning and color alteration , and good airproof property
High powder utilization rate
Technical parameters
Input frequency stainless steel screen Diameter 360mm 50-100mm optional
Powder pump 12 optional
Vibration model electrical

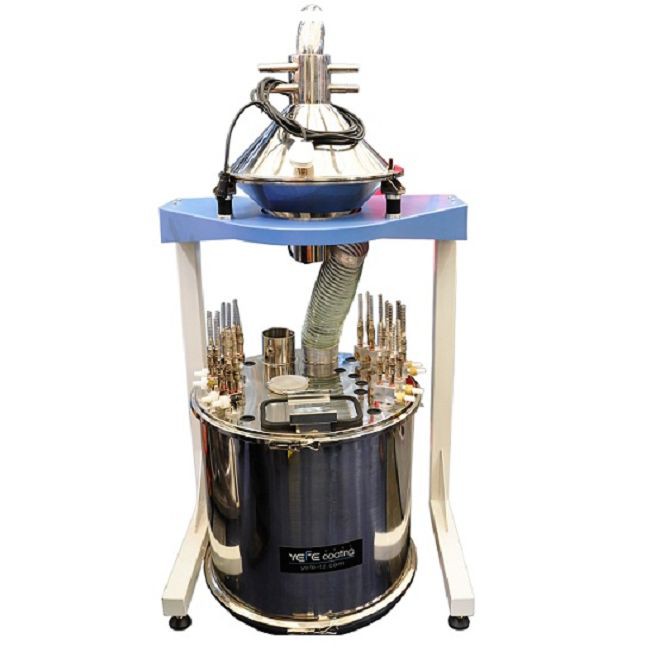

Large round powder hopper with 8holes can hold with 24pcs powder injectors
Size: 55x55cm
Weight: 22kgs
Suitable for large mass production in the automatic powder coating lines
Round hopper design for maximum efficiency during fluidization process.
Auto Powder Spray Gun Lifter and China Reciprocator
Reciprocator for powder coating line
Move to a new level of powder coating efficiency with the Reciprocator.
Summary of Benefits:
Increased Uniformity Advanced digital control.
Smooth, Swift and Precise movement for speedy and uniform coating.
Reduce powder consumption.
Quick Job Change Pre-programmable preset settings for automatic selection of stroke and speed.
User-friendly touch screen control to control speed and stroke length.
Adjustable counterbalance weights allow perfectly balanced gun movement.
Powder coating equipment Function description
The powder gun through the powder hose . The powder is electrostatically charged at the nozzle of the gun. In addition, an electrostatic field is created between the gun nozzle and the grounded object. The charged powder spray remains adhered to the surface of the object.
The powder is fluidized by air forced through a porous plastic plate from below. The powder acquires, thereby, fluid-like characteristics.
The conveying air, supplementary air, and rinsing air are set on the control
And the Central automatic spraying control cabinet also could avaiable for 4 ~ 10 sets electrostatic powder coating spray equipments.
The automatic spray gun could be several models
Electrostatic powder coating manufacture in China,Electrostatic Powder Coating Machine,Powder spraying gun, powder spray gun, metallic powder coating system, electrostatic powder spraying unit, electrostatic powder spraying.electrostatic spray application system,Surface Finishing Equipment.
Certifications
COLO powder coating spray gun, spray booth and curing oven adhere to CE, ISO certificates. With advanced technology for good effect uses. We are professional in powder coating field and have the ability to design based on special requests.
Company Information
Colo is the leading powder coating equipment manufacturer in China, which provides high quality equipments to more than 100 countries all oven the world with advanced manufacturing machines and professional technicians. Colo offers a wide range of power coating equipments, namely powder coating machine, powder coating gun, spray booth, curing oven, automatic powder coating applicator, powder coating line and replacement of spare parts for the famous brand in the world.
Welcome guests from all countries in the world to visit our factory.
FAQ-new
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge for the spare parts but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q: What is the package standard?
A: Products are packed with carton or wooden box, compliance with exporting standard, tough and safe.
COLO exibition image
Famous metal surface exibition show images
