Quick Details
|
Type:Powder Coating Booth, Closed Type Substrate:Aluminum Condition:New Machine Type:alloy wheels powder paint spray both, Spray Booths, Painting Equipment, Coating Equipment Video outgoing-inspection:Provided Machinery Test Report:Provided Marketing Type:Hot Product 2019 Warranty of core components:1 Year Core Components:Motor Coating:powder coating booth Place of Origin:Zhejiang, China Brand Name:colo Warranty:1 Year Key Selling Points:Easy to Operate |
Applicable Industries:Building Material Shops, Machinery Repair Shops, Manufacturing Plant Showroom Location:United States, Argentina, Australia Weight (KG):350 Model:COLO-0811 Product name:Alloy Wheels Electrostatic Powder Coating Machine Weight:350 KGS Operating Dimensions:Width1000*Depth800*Heght1000mm Overall dimensions:Width1300*Depth1900*Heght2100mm Filter Count:2 pcs, Quick-release Type Power Supply:220V/380V, 3Phase, 50-60HZ Filter Material:Polyester Certification:ce |
Supply Ability
Supply Ability:50 Piece/Pieces per Month
Packaging & Delivery
Packaging Details:wood case
Port:Ningbo/Shanghai

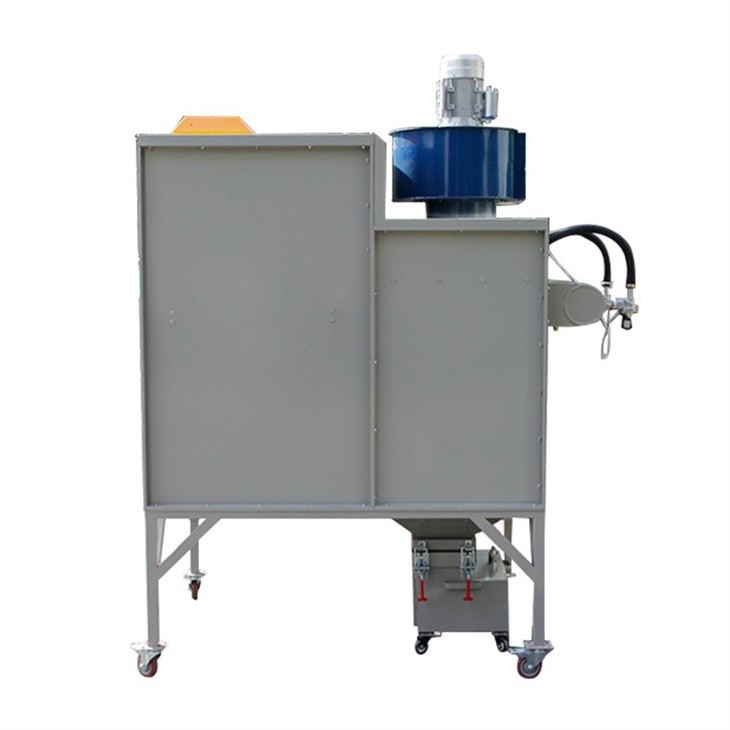

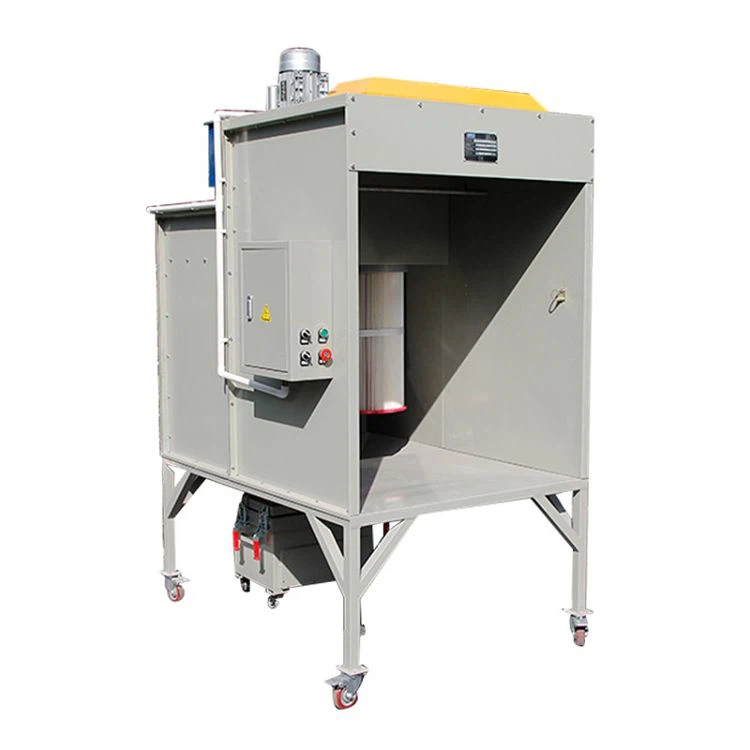

Alloy Wheels Powder Coating Paint Spray Booth

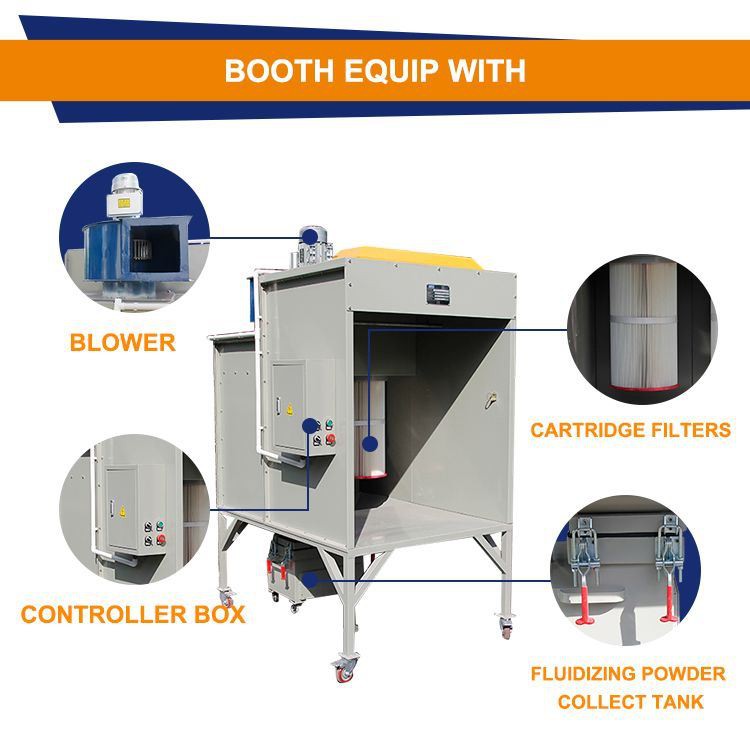

Include fans, motors, nut and bolt fasteners, filters, detailed drawings and instructions, all included in one single shipment.
Powder spray booth is an economical solution for basic powder coating operations requiring reclaim capability in continuous production situations.
For job shops, first-time powder coaters and to suppliment large in-house powder coating operations,this powder spray booths offer a variety of configuration options.

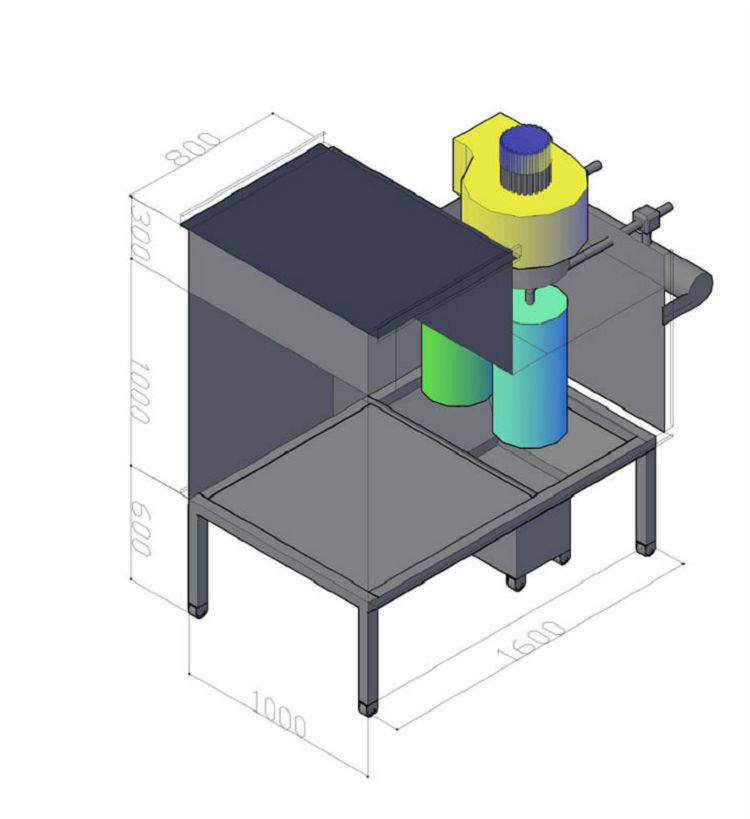

| Model | COLO-S-0811 |
| Booth Type | Closed |
| Operator dimensions | 1000width x 1000 height x 800 depth |
| Overall dimensions | 1200width x 1900 height x 1600 depth |
| Weight | 150kg |
| Power supply | Electric |
| Nominal power | 1.5kW |
| Voltage | 380V |
| Frequency | 50-60Hz |
| Filters | Polyester |
| Filters count | 2 |
| Filters hang type | easy for change |
| Filter cleaning system | Pneumatic |
| Warranty | 12 months |
Booths size could Custom,Manual and automatic spray stations are also available.
Other features include:
Durable, long-life powder-coated steel structure with high-quality galvanized canopy and floor
Low-profile booth base eliminates operator platform
Requires only quick, easy conncet electrical and pneumatics to start production .
Fan motor is 1.5KW-5.5KW.

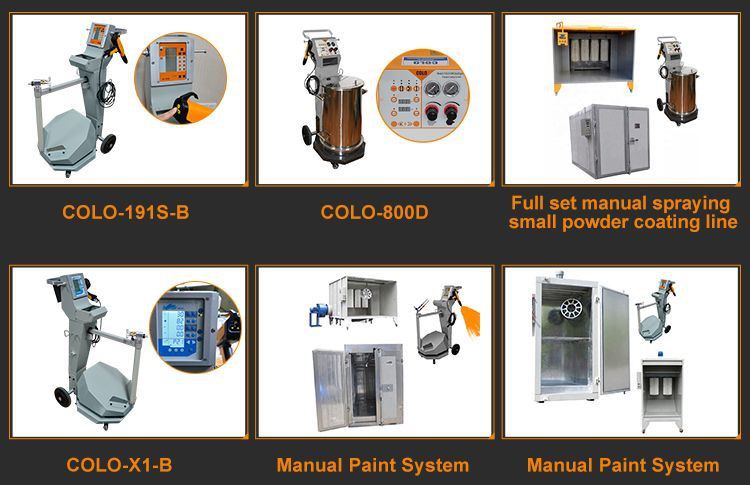

Recommend Products

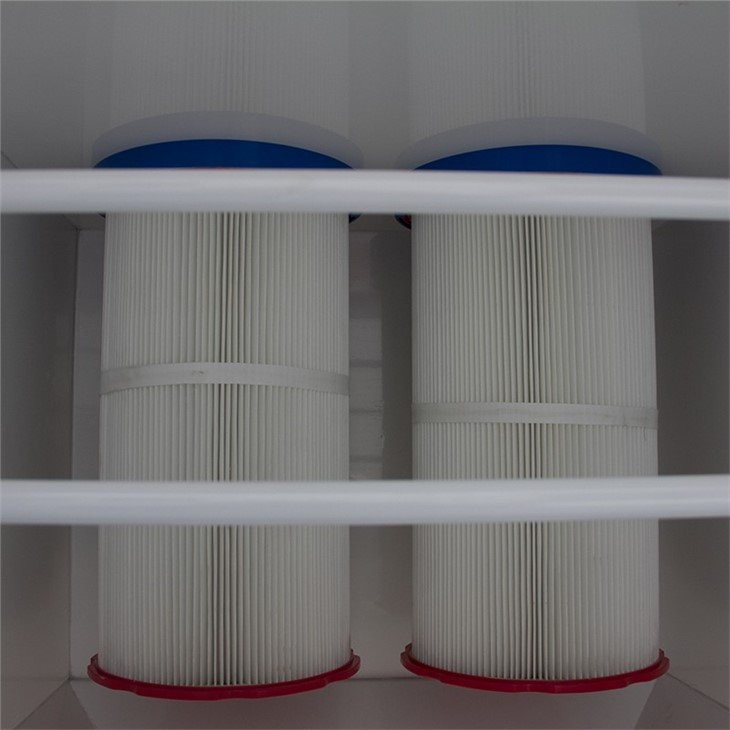

During operation overspray powder accumulates on the cartridge filters. As the cartridge filters load, airflow decreases and the negative pressure rises within the air handler. A timer activates a system of air purging valves that clear the cartridge filters of the accumulated powder to ensure maximum flitter life.

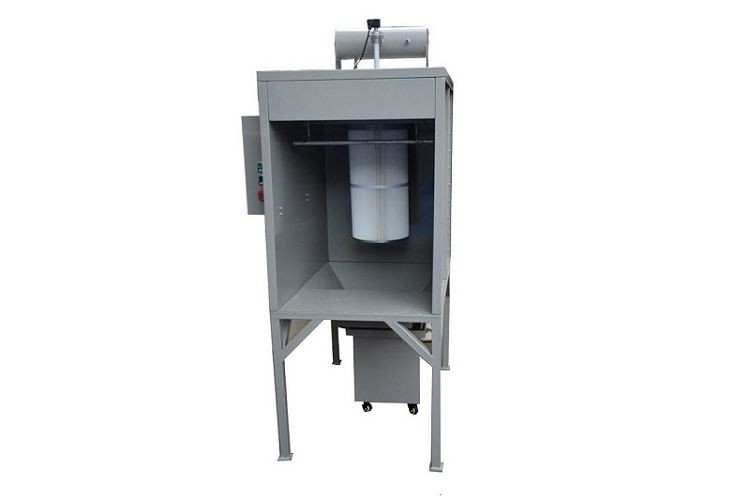

| Model | COLO-S-0711 |
| Booth Type | Closed |
| Operator dimensions | 700width x 1000 height x 800 depth |
| Overall dimensions | 1000width x 1900 height x 1600 depth |
| Weight | 150kg |
| Power supply | Electric |
| Nominal power | 1.5kW |
| Voltage | 380V |
| Frequency | 50-60Hz |
| Filters | Polyester |
| Filters count | 1 |
| Filters hang type | easy for change |
| Filter cleaning system | Pneumatic |
| Air consumption | 5100m3/h |
| Warranty | 12 months |
COLO are specialized in complete electrostatic powder coating line, paint coating plants ,curing and drying ovens, cartridge type and cyclone recovery systems, spray booth, conveyor systems.
Also we are supplier of powder coating, powder filters, powder coating machine,powder coating equipment,powder coatting gun,,Reciprocator, painting guns, pumps and their equipments.
Powder coating
Company Information

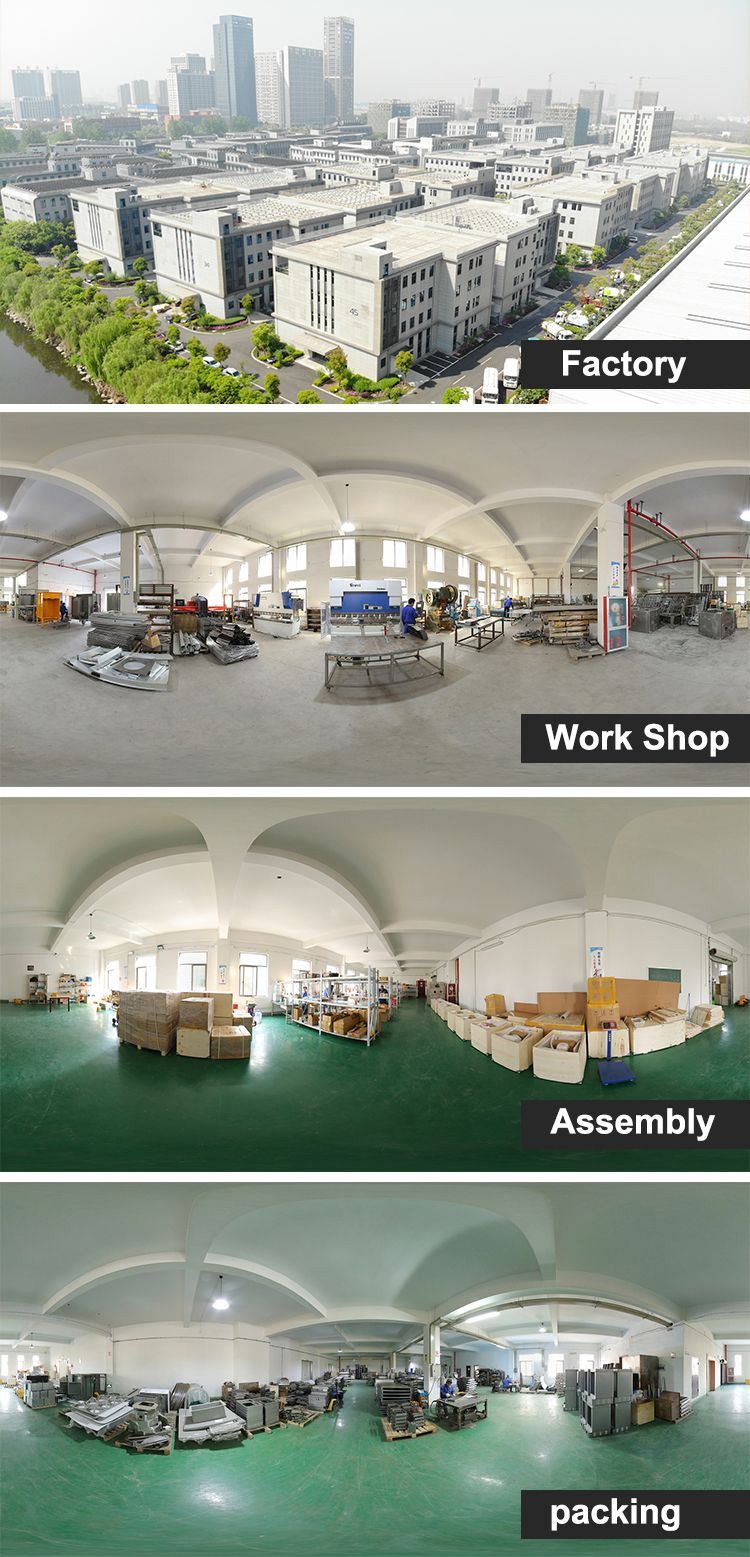

Colo have 10 years' industry experience, is the leading powder coating equipment manufacturer in China, which provides high quality equipments all over the world with advanced professional techniques.

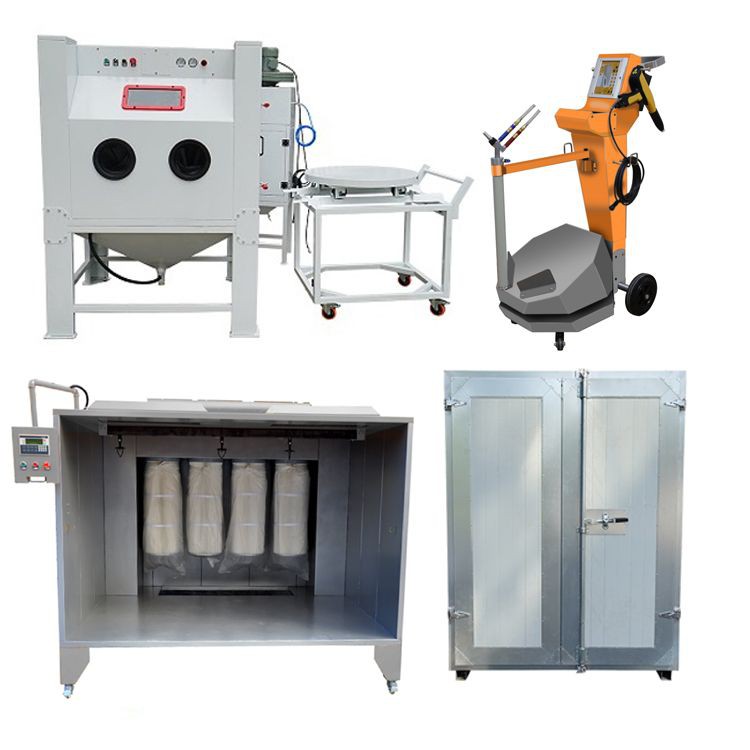

Colo offers a wide range of power coating equipments, namely powder coating machine, powder coating gun, spray booth, curing oven, automatic powder coating applicator, powder coating line and replacement of spare parts for the famous brand in the world.
Welcome guests from all countries in the world to visit our factory.
Certifications
COLO powder coating spray gun, spray booth and curing oven adhere to CE, ISO certificates. With advanced technology for good effect uses. We are professional in powder coating field and have the ability to design based on special requests.
