Quick Details
|
Type:Coating Production Line Substrate:Iron Condition:New Machine Type:Powder Coating Equipment, Coating Equipment Video outgoing-inspection:Provided Machinery Test Report:Provided Marketing Type:Ordinary Product Warranty of core components:1 Year Core Components:PLC, Pump Coating:Powder Coating Place of Origin:Zhejiang, China Brand Name:COLO Voltage:110V/220V Power:1.5kw |
Dimension(L*W*H):56*52*69CM Warranty:1 Year Key Selling Points:Easy to Operate Applicable Industries:Manufacturing Plant Showroom Location:United Kingdom, United States, Colombia Weight (KG):1000 Application:Powder Coating Spraying Guns:Electrostatic Heating system:Electric Recovery:Filters After-sales Service Provided:Online support Pretreatment:sandblasting |
Supply Ability
Supply Ability:50 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
WOODEN CASE OR CARTON,Length: 69cm Width: 52cm Height: 56cm Weight: 37 kgs
Port:Ningbo/Shanghai
Product Description

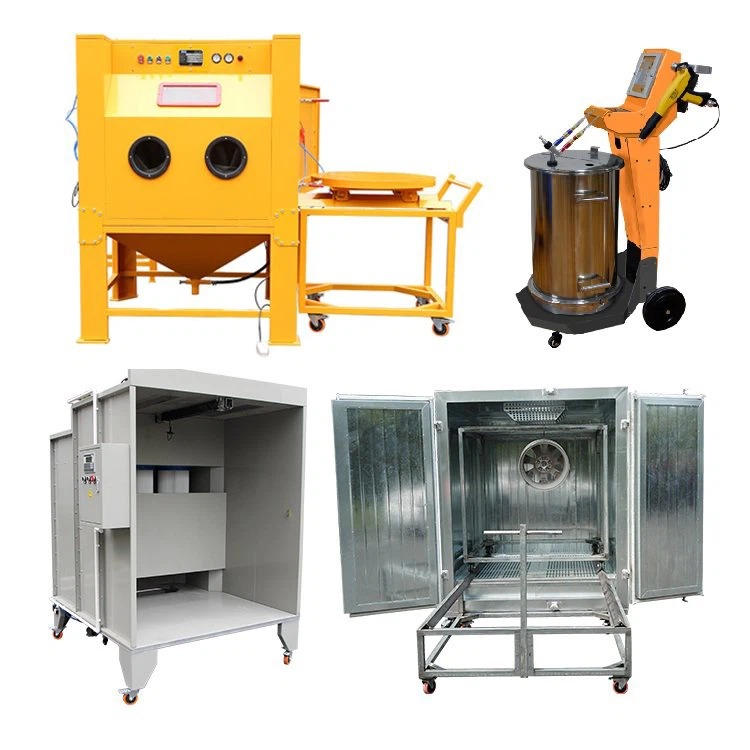

Sandblasting and Powder Coating Painting Complete Finishing System
This manual system package includes sandblasting cabinet, powder painting gun, powder spray booth, powder curing oven, supports small-to-medium batch production, gives an easy and quick start of powder coating business. It is ideal for wheel refurnishment, wheel powder coating and other small objects finishing by using less cost and labor.
Powder Coating Gun
Powder Coating Booth
Powder Curing Oven
Detailed Pictures
COLO-1212FTA Turntable Sandblasting Cabinet
Applies to the Pretreatment of coating to strengthen the adhesive force of coated surface, to remove scratches, old paint, rust, oxide layers, etc
Specially designed with a 360 degree rotating turntable, suits for easy operation of heavy objects with less efforts, such as
alloy wheels, molds, statues, motors, etc. As well as equip with a cart for easy loading and unloading.
|
Model
|
KF-1212FTA
|
|
Overall Dimension
|
Length1620*Width1250*Height2000mm
|
|
Work Chamber
|
Length1200*Width1200 x Height800mm
|
|
Turntable
|
Diameter 800mm (Maximum Load 200kgs)
|
|
Door Size
|
W750xH780
|
|
Power Supply
|
110V/220V/380V/410V450V(50-60Hz)
|
|
Motor Power
|
0.75kw
|
|
Blasting Gun
|
1 pc, with boron carbide nozzles
|
|
Blasting Gloves
|
A pair of rubber gloves
|
COLO-191S Powder Coating Machine
Designed for efficiency and reliability, it is an extremely practical model proved by worldwide users for over 10 years.
It comes with user-friendly one-touch operation buttons, which is convenient to change the shape for coating, and create perfect finish for an kinds of parts.
COLO-2315 Powder Coating Booth
Provides a clean processing condition, ideal for small batch powder coating jobs, such as car wheels/rims, bike and motorcycle parts.
Built with 4 pcs of cartridge filters for powder recovery. Automatic pulse-jetting filter cleaning prevents powder accumulation and extends filter life.
|
Model
|
COLO-S-1517
|
|
Operating Dimensions
|
Width1500 * Depth1000 * Heght1700mm
|
|
Power Supply
|
220V/380V, 3Phase, 50-60HZ
|
|
Fan Power
|
2.2kw
|
|
Filter Count
|
3 pcs, Quick-release Type
|
|
Filter Cleaning
|
Pneumatic
|
|
Control
|
PLC
|

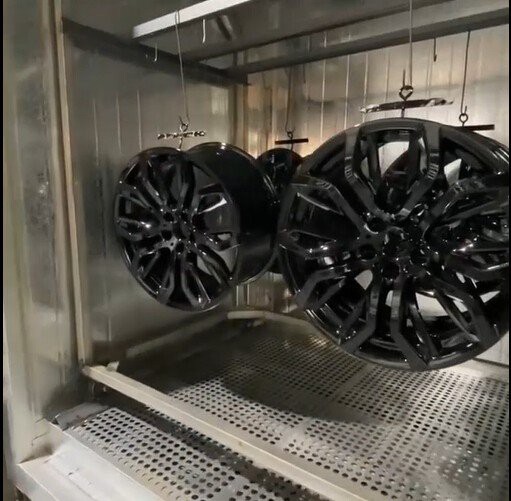

COLO-1864 Electric powder coating oven
It is specially designed for small or medium metal parts, such as car wheels, bike or motorcycle accessories. Allows to hold 8-12 pcs of alloy wheel per shift
Use electricity to create energy, the oven provides uniform hot air distribution by circulation fan resulting in quality cured
finishes.The heating process is controlled by PLC with great reliability
Standardly equipped with trolley also can be customized, there's plenty of space for hanging coated workparts.
|
Worksize dimension:
|
Wdith1600 x Height1800 x Depth1400mm
|
|
Overall dimensions:
|
Wdith1900 x Height2200 x Depth1700mm
|
|
Power supply
|
Electric/18kw
|
|
Voltage/Frequency
|
110V/220v(50-60hz)
|
|
Warm-up time
|
15-30 min. (180° C)
|
|
Temperature stability
|
< ± 3-5°C
|
|
Temperature
|
Max. 250° C
|
|
Ventilation performance
|
805-1677m3/h
|
|
Fan Power
|
0.75kw
|
|
Circulation/ Air flow
|
Vertical, Variable through holes on the walls
|
Packing & Delivery
For small parts or machines, they will be packed with carton or wooden case for good safety.
For powder coating booths, ovens or systems, we will pack with foams and films and ship into a full container.
Company Profile
COLO is an innovator of powder coating equipment industry from year 2009, exporting to more than 100 countries. Over the past years we have been recognized as the Top powder coating equipment brand in China because of our professional teams, advanced techologies, productivity solutions, reliable quality and competitive price.
COLO Coating Systems is your source for all of your powder coating equipment needs. COLO conforms to CE, ISO 9001 standards.
Our product range from manual and automatic powder coating machines, powder coating reciporcators, powder spray booths, powder recovery systems, electric/gas/diesel curing ovens, powder coating spare parts, after-market replacement parts, and complete powder coating lines.
