Quick Details
Type:Powder Coating Booth Condition:New Machine Type:Coating Production Line, Drying Oven Video outgoing-inspection:Provided Machinery Test Report:Provided Marketing Type:Hot Product 2019 Warranty of core components:1 Year Core Components:Motor Coating:Powder Coating Place of Origin:Shandong, China Brand Name:Yahui Voltage:Customization Power:Customization Dimension(L*W*H):Customization Warranty:1 Year Key Selling Points:Easy to Operate | Applicable Industries:Building Material Shops, Printing Shops, Construction works , Energy & Mining Showroom Location:None Weight (KG):1000 Product name:Powder Coating Oven Application:Industries Usage:Powder Coating Workpieces Keywords:Powder Production Line Install location:Spraying Room Control System:Electric Control Color:Cutomized Coating color:Customers Demand Advantage:Environmental-protection Spraying method:Automatic Gun Fixed Spraying |
Supply Ability
Supply Ability:100 Set/Sets per Week
Packaging & Delivery
Packaging Details
Standard export packing, 1 set/20GP; 2 sets/40HQ.
Port:qingdao
Products Description
Brief of powder coating oven:
Powder Coating Ovens are used for curing powder on metal substrates, such as aluminum extrusions, sheet metal, wheels, composite parts, bike frames and various metal geometric shapes. When a thermoset powder is exposed to elevated temperature, it begins tomelt, flows out, and then chemically reacts to form a higher molecular weight polymer in a network-like structure.

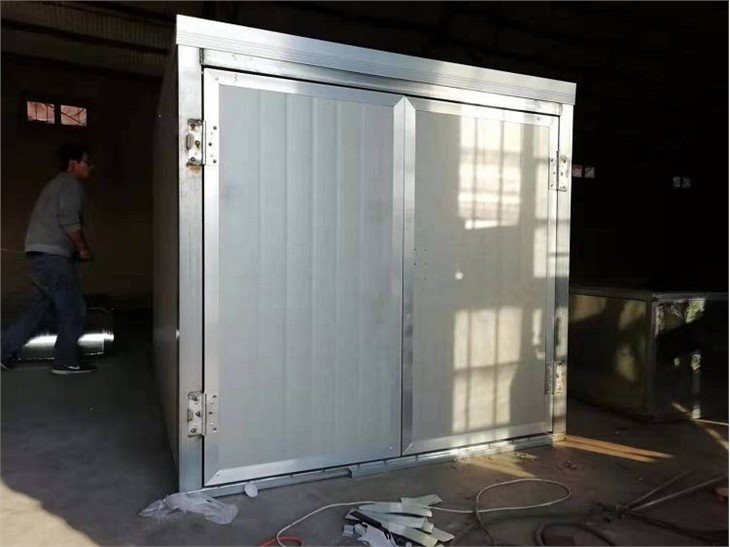

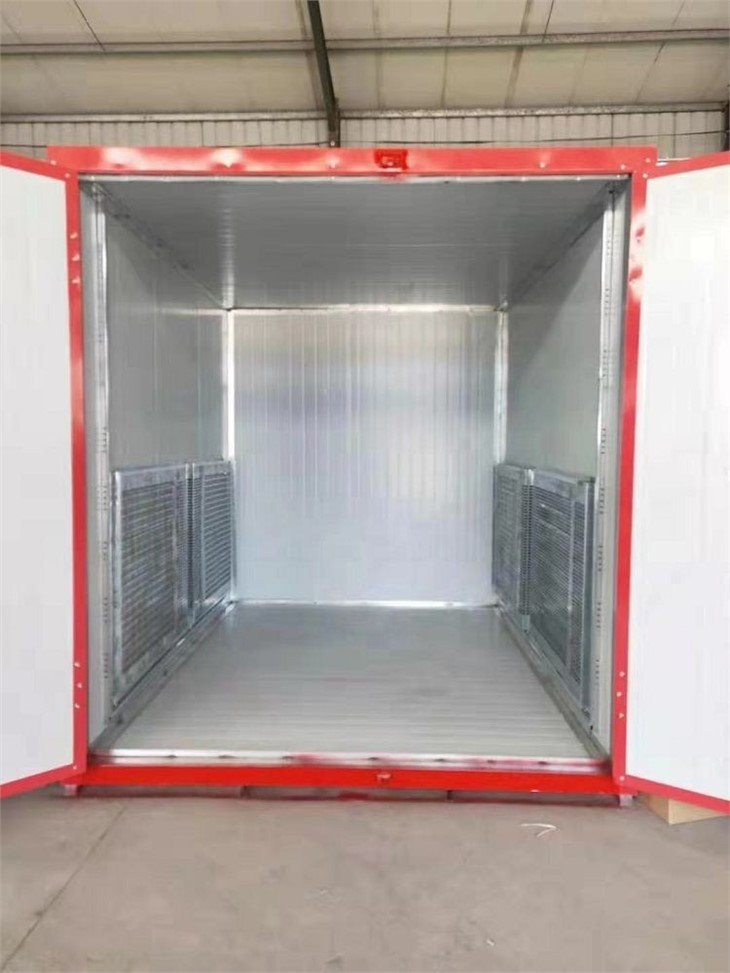

Structure:consist of Body,insulation, cover, heater. use gas to create the energy ,through the circulating fan ,make the
temperature in the oven to rise uniformly. Then make the temperature of workpiece to rise.
built-in track to roll your powder coating racks into the ovens could be ordered together as you required.
Product Paramenters
Powder coating room configuration | |
Name | Details |

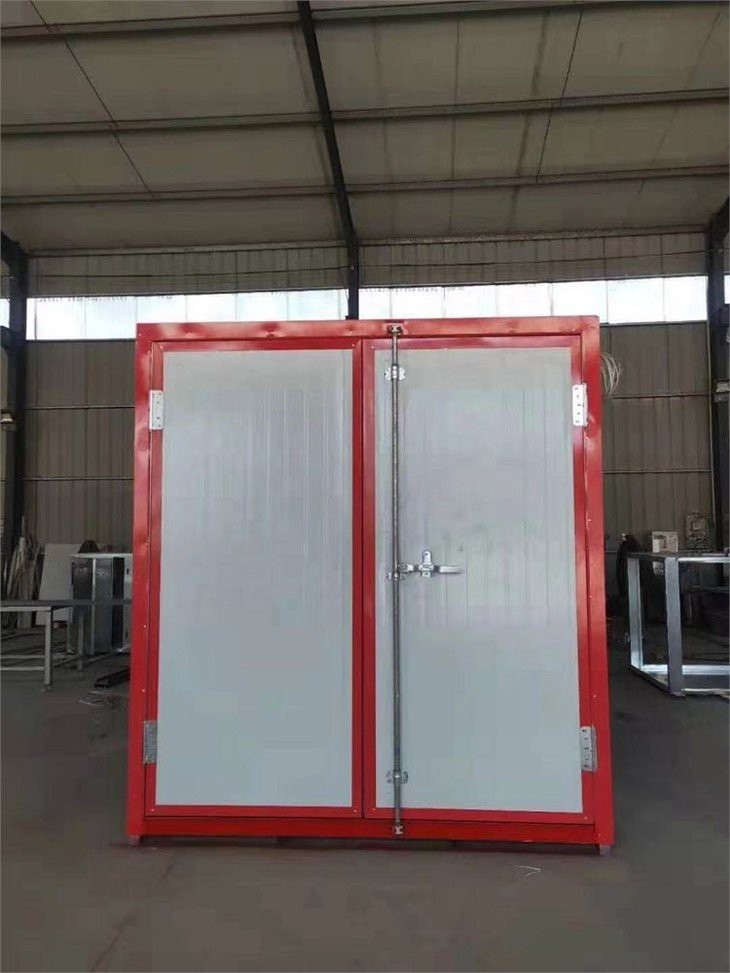

Entrance door | Powder coating surface aluminum alloy binding framework (Thickness：1.8mm) , 2 sets side hung door (One at front one at rear) ,each one size is：800*1200mm.(W*H) |
Air fan | One set motor air fan on the top of the roof for air circulate. |
Wall panel | 100mm rock wool panel anti fired insulation material with 0.526mm 2-sided iron sheet. |
Roof | 100mm rock wool panel anti fired insulation material with 0.526mm 2-sided iron sheet. |
Floor | 100mm rock wool panel anti fired insulation material with 0.526mm 2-sided iron sheet, with anti-slide checkered plate. |
Heating system | Be equipped with 48pcs infrared lamps. The operating temperature can reach 250℃. |
Control box | Export type. Microcomputer controlling system, which can program all the functions in each phase of every cycle work. Including adjusting the parameters of the time, temperature, and main circuit has multiprotection, to control the light, time, spraying, temperature, baking, failure indicator, and emergency stopand so on. Reasonbale structure and stable performance. |
Product Advantage
1. 304 stainless steel fan impeller,
2. The fan bearing is water-cooled,
3. The control cabinet is touch screen + PLC, the furnace temperature, hot air temperature, and holding time are automatically controlled (the temperature is only started)
4. The insulation layer of the heating system itself is aluminum silicate, not rock wool.
5. Curing oven body insulation is 100kg bulk density of high quality rock wool, continuous working skin is not hot
6. With heavy rail (inside and outside rail)
7. It is used as a high temperature resistant wheel for workpiece trailers.
Product packaging
1.Delivery time:
Within 25 working days after receiving deposit.
2.Package:
We use standard ecport packing in 20GP or 40GP.
We will add stretchy film for the whole machine and spare parts for delicate protaction.
3.Guarantee:
The machine is guaranteed for 24 months.
If the machine has something problem in 24 months,you will get sprae part for free.
More than 24 months,you will get the cost price for accessories.
4.Techinical support:
Technical support by phone,email,wecaht,whatsapp and slype,24 hours online.
Engineer available to service macinery overseas.
5.After sales services:
Our machine is installed and tested well before delivery.
You can operate the machine immediately after receiving machine.
If you don't know how to use the machine,we will offer you free training.
And if there is still have any questions,please contact us.
Company Profile
Shandong Yahui Machinery Manufacturing Co.,Ltd
We are specialized in auto garage spray booth,which have more than 10 years experience.Our products are passed CE and CCC certification,with high quality and competitive price.
In addition, we will solve all possible problems during customer installation during the production process. Such as:cabinet installtion, pre-install the door, basement and etc.Help customers save time and effort.
For us, quality of service doesn’t end with the received goods. We We will track the whole process.Choose us we can work togetherand make your business more profitable.
We have sold to USA, EU countries, such as Finland, and some Middle Eastern countries and Saudi Arabia etc. With CE certification and CCC certification. Welcome to contact us know more details!
Ready serve for you!!!
Customer feedback
Glad to receive feedback from customer.This is the most direct proof of product quality.
Which will make us more refined and better service in the future.
