Quick Details
|
Type:Coating Spray Gun Substrate:Steel Condition:New Machine Type:lab powder coating machine Video outgoing-inspection:Provided Machinery Test Report:Provided Marketing Type:Ordinary Product Warranty of core components:1 Year Core Components:Digital Controller Coating:Powder Coating Place of Origin:Zhejiang, China Brand Name:HICOLO Voltage:100-240 V Power:50W Dimension(L*W*H):43*35*42cm Warranty:1 Year, 12 months Key Selling Points:Long Service Life Applicable Industries:Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Home Use, Construction works |
Showroom Location:None Color:yollow Powder supply:electric Frequency:50HZ/60HZ Powder Gun:COLO-08 Powder gun Maximum output voltage:0-100KV ( adjustable) Hopper:Colo-mini-B Kinds of coating:powder Coating Application:all kinds of metal Programs:3pcs for flat,conner,recoating After-sales Service Provided:Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support After Warranty Service:Video technical support, Online support, Spare parts, Field maintenance and repair service Local Service Location:None Weight:10.6kgs Certification:CE |
Supply Ability
Supply Ability:100 Piece/Pieces per Month
Packaging & Delivery
Packaging Details:WOODEN BOX OR CARTONS
Port:Ningbo
Product Description

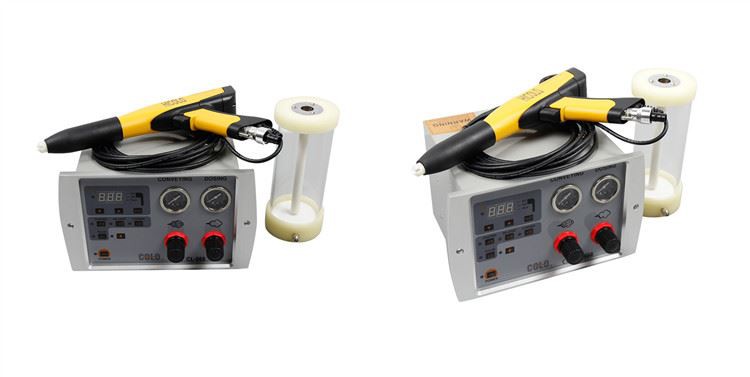

Portable Small Digital Manual Powder coating gun unit colo-668T-B
1. Lab Intelligent Powder Paint Spray Gun
2. 3 preset programs for flat, conner and recoating
3. Pulse funcation suitable for difficult workpiece
4. Small Hopper can carry 2 pounds powder
Applications
Suitable for Small Powder Coating job in laboratory,for Small Metal pieces, like Car wheels, chairs, auto parts, bicycle
accessories, etc.
Details Images
 |

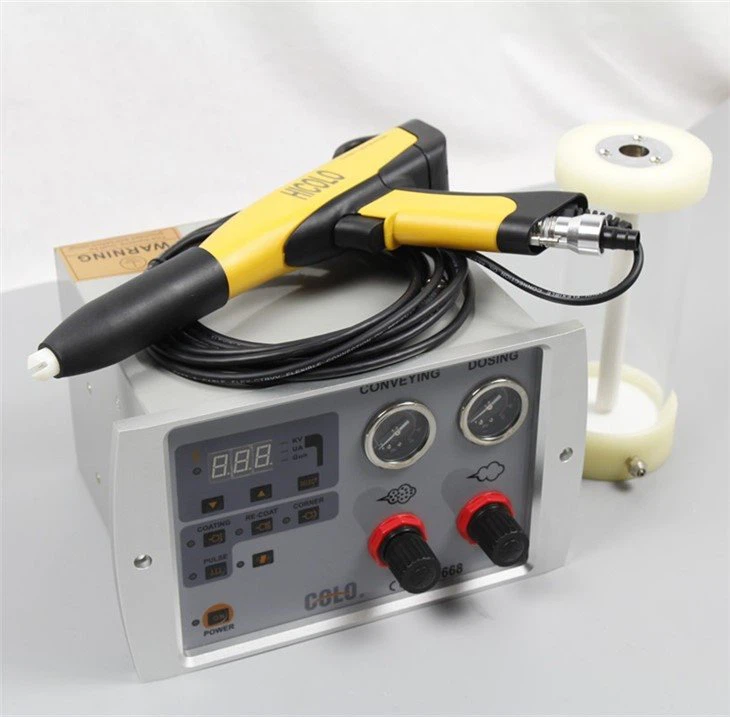

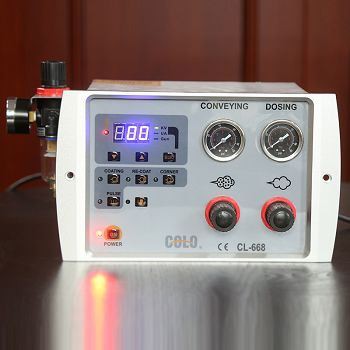

COLO-668 Powder Spray Gun Controller 1. Three preset powder coating programs for spraying flat parts, complex parts and recoat jobs. 2. Pulse funtion is able to overcome faraday cage effect, easy to coat harder and deeper place. 3. 0-100KV Digital Adjustable Voltage and Amperage, offers high-quality powder coating effect. 4. Fully Adjustable Air for Pump on Pressure, Dosage and Nozzle Rinsing Air. |
|
COLO-08 Powder Spray Gun 1. Built-in 100kv cascade offers highest transfer efficiency, a great saving of powders. 2. Ergonomic handle provides comfortable grip and reduces operators' fatigue. 3. Robust struction and high quality materials provies a longer service life. 4. Quick release coupling for fast and efficient color changes. |
 |

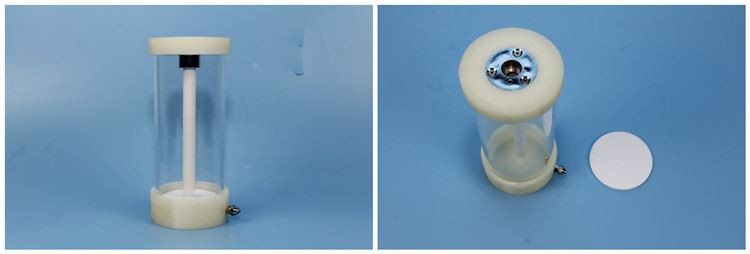

Powder Fluidizing Hopper
Capacity: 2 lbs

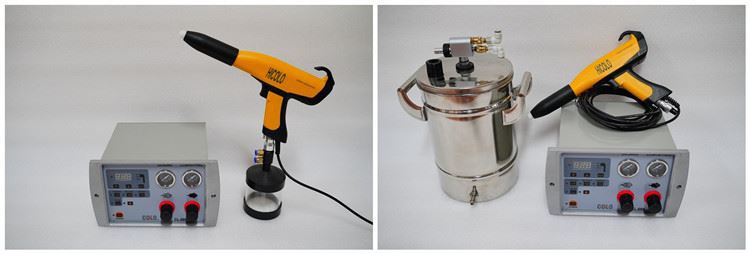

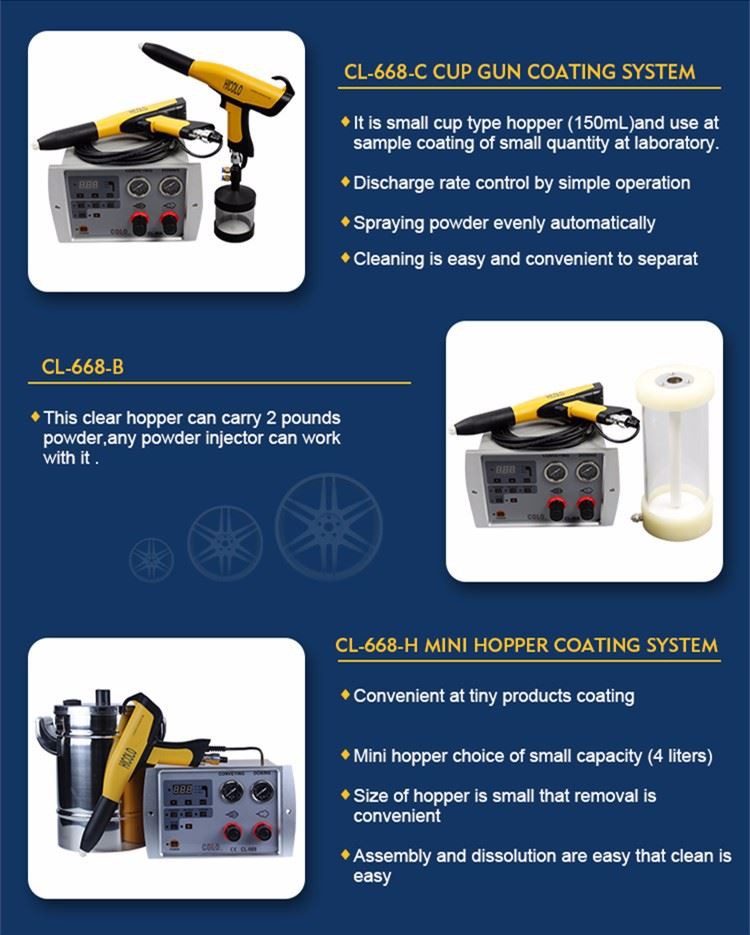

COLO-668 series lab powder coating machines
Product Paramenters
|
Product Name
|
Manual powder coating machine colo-668T-B
|
|
LModel
|
Lab Model
|
|
Color
|
yellow
|
|
Hopper model
|
Colo-mini-b
|
|
Hopper capacity
|
2 pounds powder
|
|
Voltage
|
100-240 V
|
|
Frequency
|
50/60HZ
|
|
Input power
|
50W
|
|
Temperature range in use
|
-10 to +50
|
|
Powder Gun
|
Colo-08 Spray gun
|
|
Gun weight
|
500G
|
|
Rated output voltage
|
24VDC
|
|
Aximum output current
|
180Ua(max)
|
|
Maximum output voltage
|
0-100KV ( adjustable)
|
|
Maximum powder injection
|
600g/min
|
|
Polarity
|
negative (-)
|
|
Maximum input-air pressure
|
10kg/cm
|
|
Optimum input-air pressure
|
6kg/cm
|
|
Minimum input-air pressure
|
4kg/cm
|
|
Maximum water vapor content or compressed air
|
1.4g/N m3
|
|
Maximum oil vapor content of compressed air
|
0.1ppm
|
|
Maximum compressed-air consumption
|
13.2 m3/h
|
Packing & Delivery
Packing Details : If use Cartons in 70*56*54cm, gross weight is 36kgs.
If use wooden box 73*60*64,cm,gross weight 45kgs
Delivery Details : 5pcs in 2-5 days after payment, 10 pcs in 5-7 days after payment, 50pcs 10-15 days after payment.
 |
 |
 |
| 1. Packing in cartons | 2. All parts in detail | 3. Carton box for powder spray gun |
 |
 |
 |
| 4. Carton box for machine | 5. Suitable wooden size | 6. Shipping and packaging |
Our Company
 |
 |
|

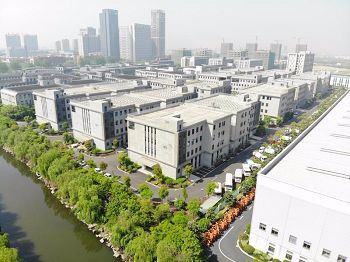

Factory Our Factor |

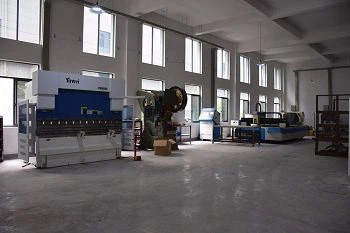

Workshop Our Workshop |
 |
 |
|

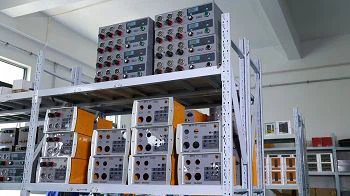

Warehouse Our Warehous |
Team Our Team |
Customer Photo
|
Customer from India Powder coating machine+powder spray gun according to customer ' s requirement |
 |
 |
Customer from Algeria Powder coating system with manual powder coating oven,powder spray booth and powder coating gun according to customer ' s requirement. |
|
Customer From Palestine Powder coating spare parts, like insert sleeve for powder pump, powder hose for powder coating gun ,powder injector and spray nozzle for powder spray gun according to customer ' s requirement. |
 |
FAQ
Q: How much Paint does it stay in the piece during?
A: 60-70%,if use auto spray gun, always also need manual spray gun to recoat and repair the workpiece.
Q: How much is recovered from first hand powder coat application?
A: 90-99%
Q: What distance is recommended to paint round pieces? (Distance from powder coating automatic guns to parts)
A: 150mm-300mm as your workpiece ,round piece need special hanger can by self turn around.
Q: It is save to order from colo?
Yes, 100% sure you are safe to order from us ,we exported into more than 90 countries ,and in many countries we have agents or Distributors and we are the famous factory in the powder coating equipmen in china.
