Substrate:stainless steel
Condition:New
Quick Details
Type:Powder Coating Oven Of Powder Coating System Substrate:stainless steel Condition:New Machine Type:Powder Coating Oven Coating:Powder Coating Place of Origin:Shandong, China Brand Name:Kolin Voltage:Powder Coating Oven Power:Powder Coating Oven Dimension(L*W*H):Powder Coating Oven Warranty:12 months Key Selling Points:High quality Applicable Industries:Manufacturing Plant Showroom Location:None After Warranty Service:Video technical support, Online support, Spare parts, Field maintenance and repair service | Local Service Location:Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan Weight:Powder Coating Oven Certification:ISO 9001 After-sales Service Provided:Engineers available to service machinery overseas The Equipment Name:Powder Coating Oven The metail of powder coating oven:150-200mm thick rock wool steel board The dimension of powder coating oven:as requirments The Fan of powder coating oven:High temperature fan The burner of powder coating oven:Riello Burner The power of powder coating oven:as requirments The color of powder coating oven:as requirments The install of powder coating oven:3D drawing Heating system of powder coating oven:Diesel,natural gas,LPG,electricity etc |
Supply Ability
Supply Ability:100 Set/Sets per Month
Packaging & Delivery
Packaging Details
Plywood packaging Or Iron board packaging .
If customer have special requirements , We also support it .
Port:QINGDAO
Product Description

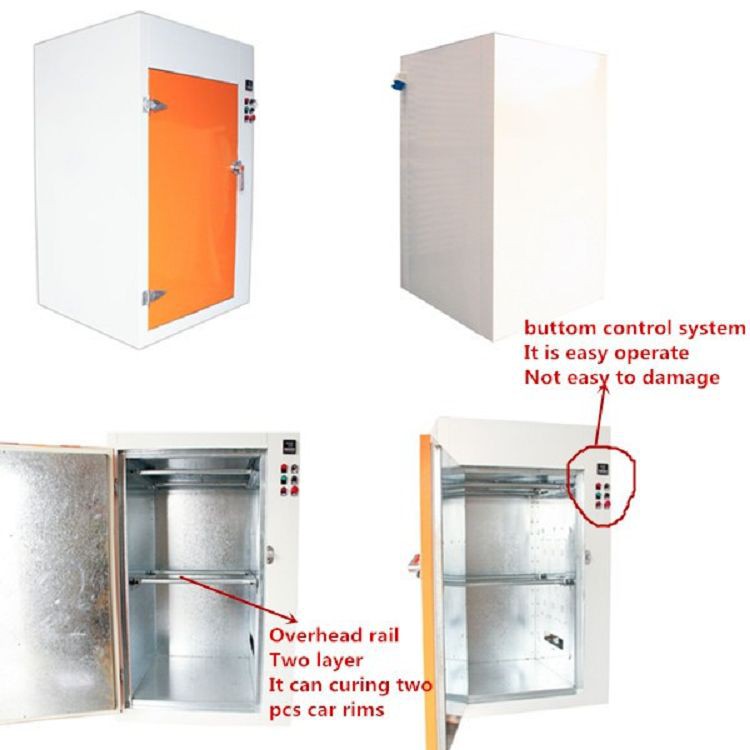

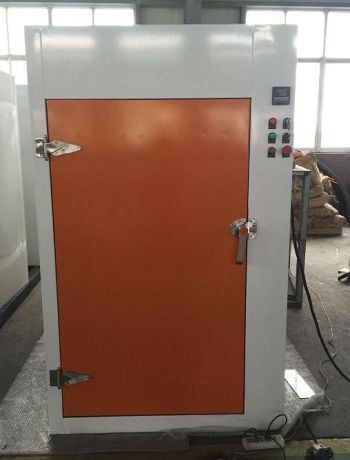

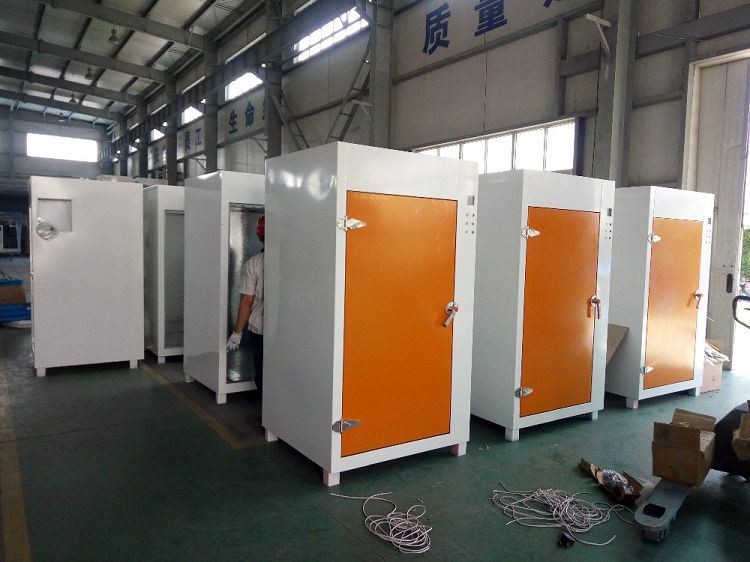

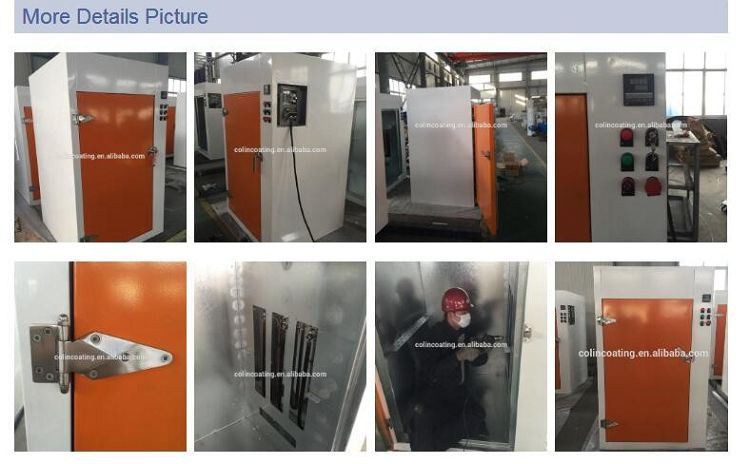

Powder coating curing oven for wheels refurbishing with CE is specially designed for the small parts curing after coating, like alloy wheels coating curing, etc.

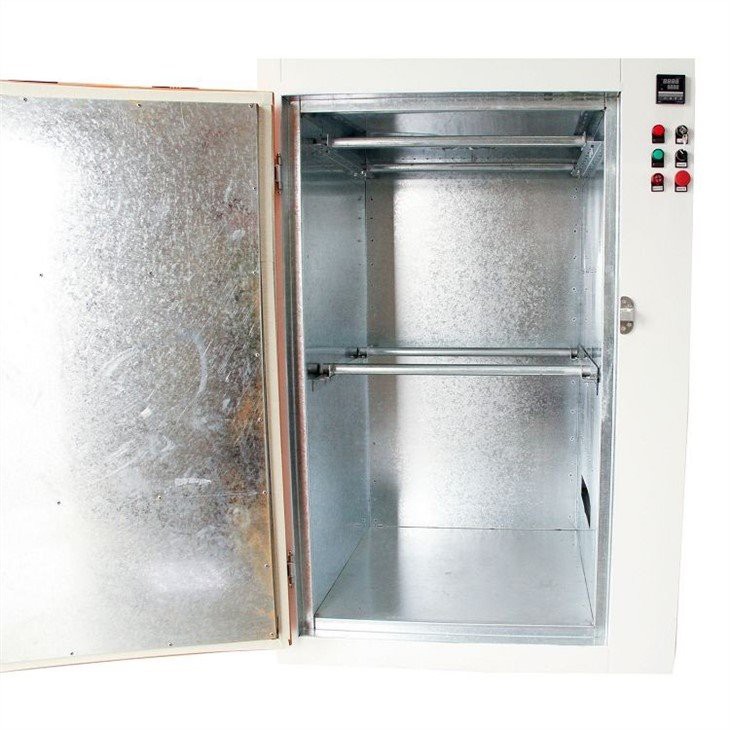

The inner / available dimensions are 800*800*1400mm ( LXWXH), and stainless steel electric heating tubes will supply enough heating for the whole oven's running and make sure the best curing effect.
A high temprature resistance motor / fan is specially designed for the air recirculations.
Wheels are designed for the easier operations and operator can move the oven around.
Items | Technical Specifications | Total |
Inner Dimensions | 800*800*1400mm ( LxWxH) | |
Exterior Dimensions | 1040*1040*1840mm ( L x W x H) | |
Wall Panels | 120mm rock wool panels; Good heat preservations and safe operations; | |
Heating System | Stainless steel electric heating tubes | 3*2kw+6kw |
Air Recirculations | High temperature resistance motor | |
Outlooking | Nice outlooking | |
Movable | Wheels are specially designed for easier operations' | |

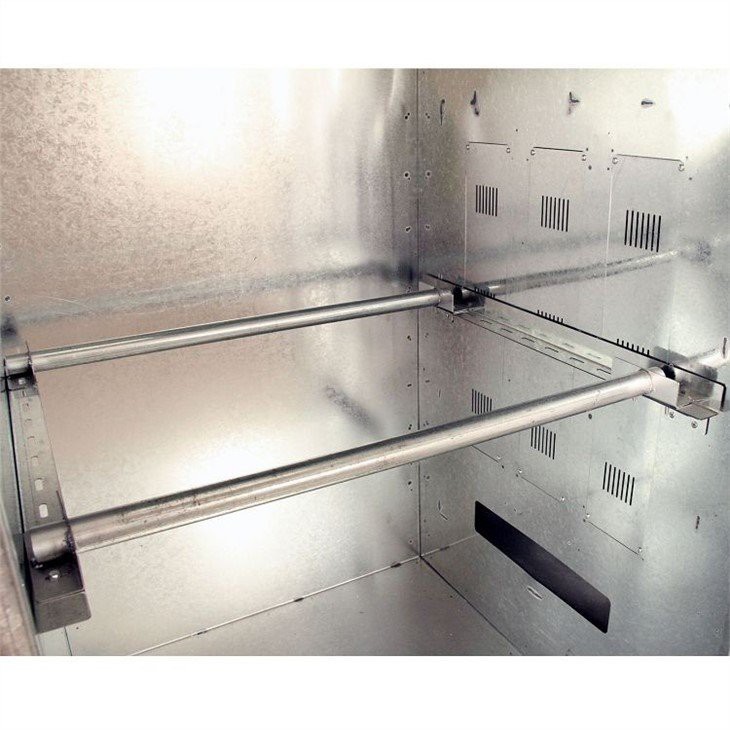

Hanging | Tracks designed |
Packing & Delivery
Certifications

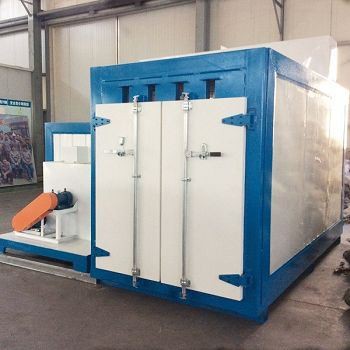

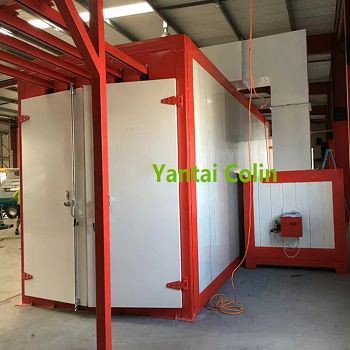

Related Product
 | Colin - 160 - Available dimensions: 875x845x1600mm (L*W*H); - Exterior dimensions: 1115x 1165x 2040mm (L*W*H); - Power supply: Electric/ 3x2kw - Voltage/Frequency: 380V/220v(50-60hz); The voltage will be customized ; - Warm-up time: 15-30 min. (180°C) - Temperature stability : < ± 1-3°C - Temperature max. 250° C - Warranty: 12 months |

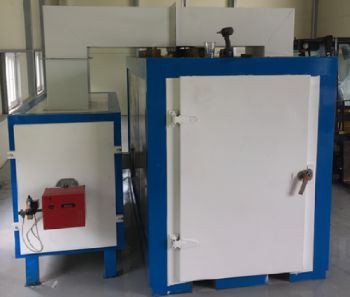

Colin - 300 - Available dimensions: 3000*1000*1600mm ( L*W*H ); - Exterior dimensions: 3300*1500*2100mm ( L*W*H ); - Power supply: FS5 LPG burner; - 1 unit 0.55kw high temperature resisting fan; - Voltage/Frequency: 380V/220v(50-60hz); - Warm-up time: 15-30 min. (180°C) - Temperature stability : < ± 1-3°C - Temperature max. 250° C - Warranty: 12 months |  |
Colin - 460 - Available dimensions: 4600 * 2850* 2650 mm ( L*W*H ); - Exterior dimensions: 4850*3450*3200mm ( L*W*H ); - Power supply: Electric / 42sets *3kw =138kw Sustainless electric heating tubes; - 2 unit 4kw YW5-47 high temperature resisting fan; - Voltage/Frequency: 380V/220v(50-60hz); - Warm-up time: 15-30 min. (180°C) - Temperature stability : < ± 1-3°C - Temperature max. 250° C - Warranty: 12 months |  |
 | Colin -560 - Available dimensions: 5600*2300*3300mm ( L x W x H); - Exterior dimensions: 5900*2600*3525mm ( L*W*H ); - Power supply: Diesel/ 1unit Riello Brand diesel burner G20 - 1 unit 5.5kw high temperature resisting fan; - Voltage/Frequency: 380V/220v(50-60hz); - Warm-up time: 15-30 min. (180°C) - Temperature stability : < ± 1-3°C - Temperature max. 250° C - Warranty: 12 months |
Colin-600 - Available dimensions: 6000 * 1700* 3200 mm ( L x W x H); - Exterior dimensions: 6300 * 2150 * 3580 mm ( L*W*H ); - Power supply: Diesel/ 1unit Riello Brand diesel burner FS20 - 1 unit 5.5kw Y5-48-5C high temperature resisting fan; - Voltage/Frequency: 380V/220v(50-60hz); - Warm-up time: 15-30 min. (180°C) - Temperature stability : < ± 1-3°C - Temperature max. 250° C - Warranty: 12 months |  |
 | Colin -700 - Available dimensions: 7300*1700*2100mm ( L x W x H); - Exterior dimensions: 7600*2300*2600mm ( L*W*H ); - Power supply: Electric/ 36units*3kw=108KW stainless steel electric heating tube; - 2 units 4kw high temperature resisting fan YW5-47; - Voltage/Frequency: 380V/220v(50-60hz); - Warm-up time: 15-30 min. (180°C) - Temperature stability : < ± 1-3°C - Temperature max. 250° C - Warranty: 12 months |
Our Service

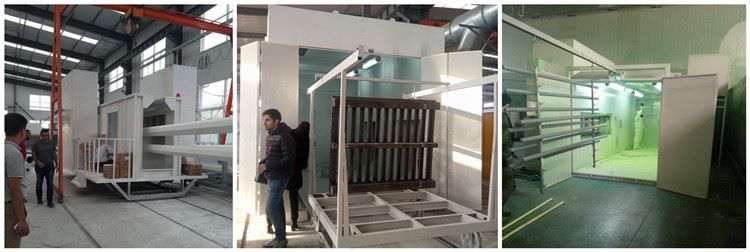

 | Why choose Colin: * Colin product , before shipping . Have worker pre- assemble all parts of powder coating equipment to sure every parts size and details are no problem . We also take pictures and video about pre-asseble to show customer . * We will special customized this 3D install drawing for customer to help customer install this equipment . * We also can support professional engineer can go to customer's workshop to guide install work . * We have professtainal engineer as after-sale service . We can suer solve your questions within 24 hours . |
